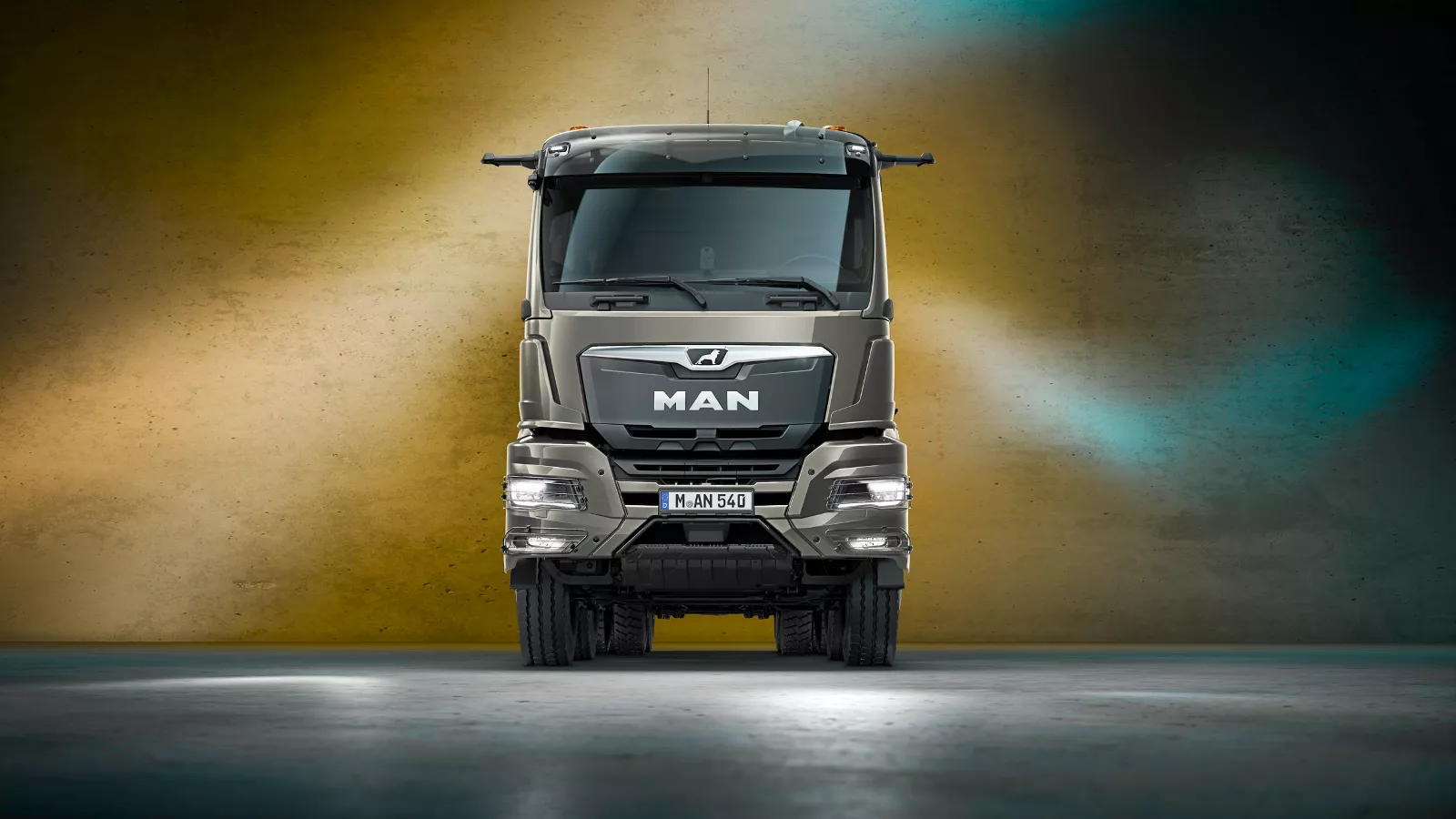

MAN TGS – Specifications
Specifications
+−Chassis
| Chassis | Tipper | |
|---|---|---|
| 4x2 | X | X |
| 4x4 | X | X |
| 6x2- | X | _ |
| 6x2 | _ | _ |
| 6x4 | _ | X |
| 6x4- | _ | _ |
| 6x6 | _ | _ |
| 8x2- | _ | _ |
| 8x4 | _ | _ |
| 8x4/ 8x4- | _ | _ |
| 8x6 / 8x8 | _ | _ |
+−Engine & Performance Data
| Engine series | Cylinder, design | Displacement [Liter] | Performance [kW (PS)] | Emission standard | For vehicle series |
|---|---|---|---|---|---|
| D0836 | 6 in-line | 6.9 | 235 (320) / 213 (290) / 184 (250) | Euro 5 | TGM |
+−Cabs
CC cab (the compact: slim, short, medium high) — external length 1,620 mm, external width 2,240 mm, interior length 1,550 mm, interior width 2,070 mm, 2 (optionally 3) seats.
DN cab (the double cabin) — external length 2,790 mm, external width 2,240 mm, interior length 2,650 mm, interior width 2,070 mm, 6 (optionally 7) seats.
TN cab (the flexible: slim, long, standard height) — external length 2,280 mm, external width 2,240 mm, interior length 2,145 mm, interior width 2,070 mm, 2 seats, 208 l left + 242 l right rear storage boxes, 133 l central storage below bed.
+−Media Systems
Available in five tiers: MAN media system Navigation Professional (12.3"), Navigation Advanced (7"), Advanced (7"), the base 7" media system, and the MAN radio with SD card (7").
USB/AUX input, MAN SmartSelect compatibility, and a message centre are standard from the base 7" tier upward. Truck navigation, map updates and online traffic are exclusive to the two Navigation tiers. Bluetooth streaming and an SD card reader are standard across all tiers.
