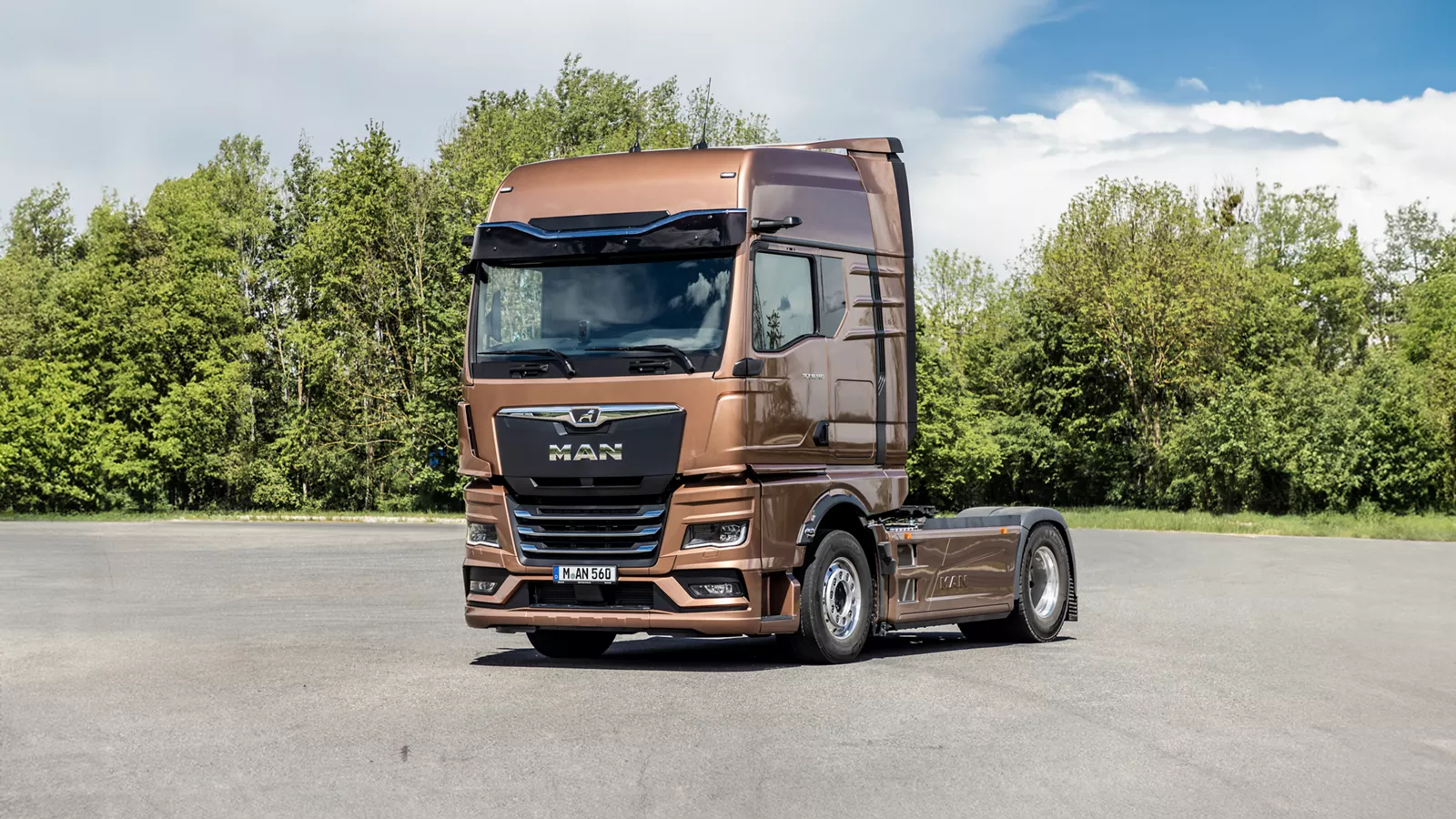

MAN TGX – Specifications
Specifications
+−Chassis
| Tractor | Chassis | |
|---|---|---|
| 4x2 | ✓ | _ |
| 4x4 | _ | _ |
| 6x2- | ✓ | _ |
| 6x2 | ✓ | _ |
| 6x4 | ✓ | _ |
| 6x4- | _ | _ |
| 6x6 | _ | _ |
| 8x2- | _ | _ |
| 8x4 | _ | _ |
| 8x4/ 8x4- | _ | _ |
| 8x6 / 8x8 | _ | _ |
+−Engine & Performance Data
| Engine series | Cylinder, design | Displacement [Liter] | Performance [kW (PS)] |
|---|---|---|---|
| D2676 | 6 in-line | 12.4 | 375 (510) in Euro 6D emission standard / 397 (540) in Euro 5 emission standard |
+−Cabs
GM cab (the generous: wide, long, medium high)
External length 2,280 mm, external width 2,440 mm, interior length 2,145 mm, interior width 2,270 mm, engine tunnel height 120 mm, standing height on the engine tunnel 1,860 mm.
2 seats. Up to 2 beds — lower bed 2,000 x 800 mm (700 mm behind the seats), 690 mm headroom; upper bed 2,000 x 715 mm, 570 mm headroom.
Storage: 48 l roof compartments, 200 l roof luggage rack, 234 l left + 292 l right rear storage boxes, 219 l central storage below bed.
Suitability: very good for standard long-haul, good for long-distance payload, qualified for construction-site traction, distribution and municipal use.
